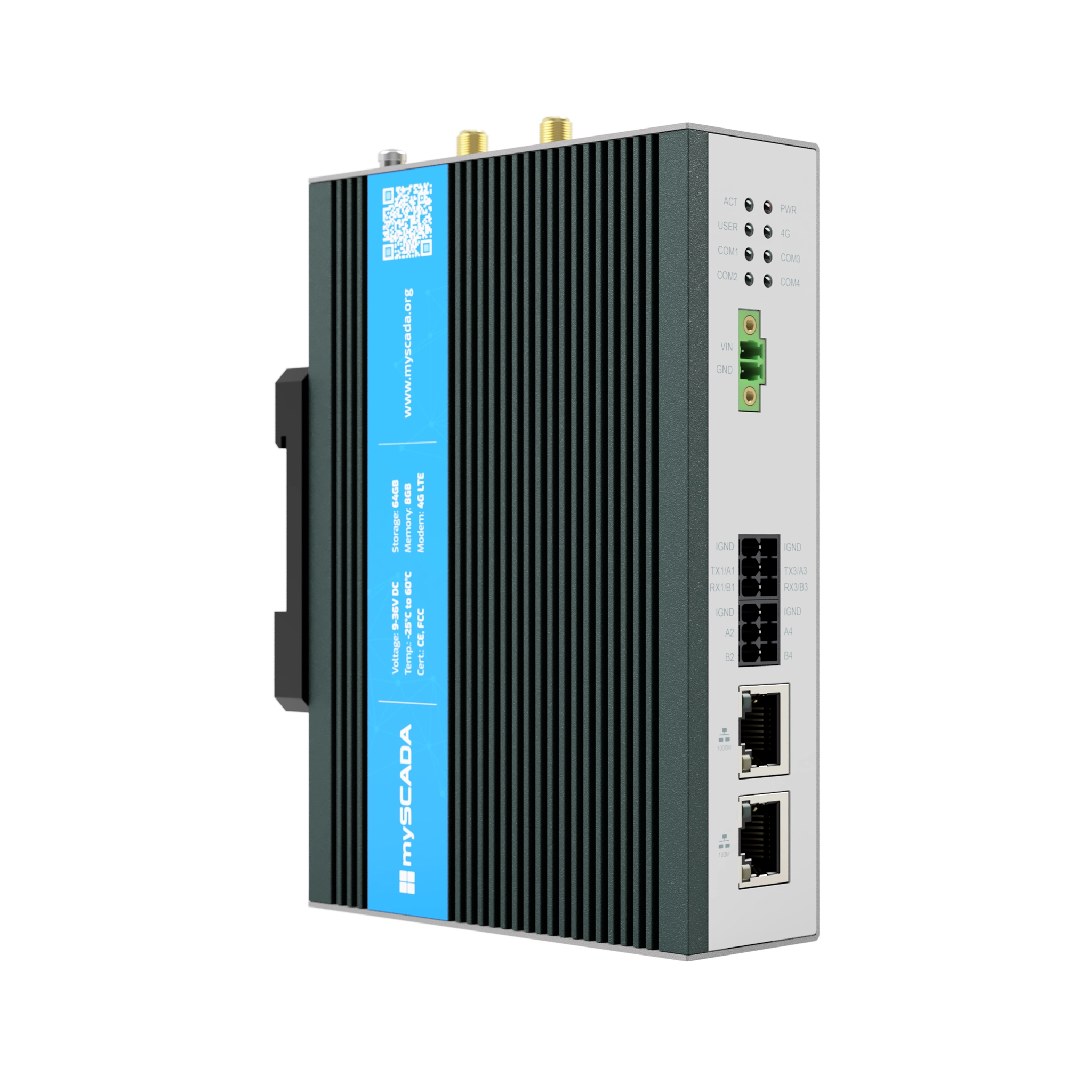

myBOX IPC

Name: myBOX IPC
Brand: mySCADA
Availability: InStock

All-in-One Industrial SCADA Gateway

myBOX IPC is the optimal integration of an industrial router and a SCADA server in a single compact enclosure. It combines HMI/SCADA, VPN, firewall and 4G LTE connectivity into a DIN-rail device ready for deployment in minutes — no separate PC, no external router, no complex network setup required.

Minutes

Setup time

Quad-core ARM @ 2.4 GHz

CPU

−25 °C to +60 °C

Operating temp

Key Features

Includes myPRO Unlimited license — device-bound, non-transferable
Integrated SCADA server + VPN router + 4G LTE modem
Quad-core ARM v8 64-bit @ 2.4 GHz, 8 GB LPDDR4 RAM
64 GB eMMC storage, expandable via Micro SD or M.2 NVMe SSD
2× Ethernet (1 Gbps + 100 Mbps), dual-band Wi-Fi, Bluetooth
4G LTE with GPS/GLONASS, 2× RS485 + 2× RS232 (galvanically isolated)
Supercapacitor power-failure protection — no data loss on power cut
Two-network architecture separates PLC network from operator network
Processes thousands of alarms per second
DIN-rail mount, 9–36 V DC input, max 24 W

Technical Specifications

CPU / RAM / Storage: Quad-core ARM v8 64-bit @ 2.4 GHz / 8 GB LPDDR4 / 64 GB eMMC
Expansion: Micro SD, M.2 NVMe SSD
WAN: 4G LTE + GPS/GLONASS, dual-band Wi-Fi 2.4/5 GHz, Bluetooth
Ethernet: 1× Gigabit + 1× 100 Mbps
Serial: 2× RS485 + 2× RS232 (galvanically isolated), 2× USB 2.0
Power: 9–36 V DC, max 24 W, supercapacitor protection
Dimensions / Weight: 143 × 100 × 35 mm / 750 g, DIN-rail
Temperature: −25 °C to +60 °C

Real-World Deployments

Success Stories

Home & Building Automation

Smart Home Automation

Complete smart home deployment connecting Allen-Bradley and Loxone PLCs via myBOX IPC — full remote control of climate, security, energy and access from any device worldwide.

Read case study

Traffic & Infrastructure

Husovický Tunnel

mySCADA modernized the 600-metre Husovický Tunnel in Brno — replacing obsolete HMI with iPad-based operation and delivering significant cost savings over competing systems.

Read case study

Mining Equipment

INCO Engineering

INCO Engineering remotely monitors mining hoist equipment across three sites in Russia — 24/7 diagnostics from 2,500+ miles away via secure IPsec VPN.

Read case study

View all success stories

Why myBOX IPC?

A single DIN-rail unit replaces a PC, an industrial router, a 4G modem, and a VPN gateway — reducing cost, complexity and installation time.

Industrial-Grade Reliability

Operates from −25 °C to +60 °C, withstands vibration and shock. Designed for continuous 24/7 operation in demanding factory environments without fan cooling.

Supercapacitor Protection

Built-in supercapacitor bridges power outages long enough to flush all data to storage. No data loss, no corrupted databases — even on sudden power cuts.

4G LTE + VPN Built-In

Integrated 4G LTE modem with GPS/GLONASS provides connectivity wherever there is a mobile signal. myACCESS VPN runs directly on the device — no external router needed.

Two-Network Architecture

Separates the PLC network from the operator network at hardware level. Operators never have direct access to PLCs — all communication is mediated and logged by mySCADA.

Full mySCADA Feature Set

Runs the complete myPRO runtime — alarms, trends, OEE, recipe management, paperless maintenance, data logging and user tracking — all included in the myPRO Unlimited license.

Minutes to Deploy

Clip onto the DIN rail, connect power (9–36 V DC) and Ethernet, load your project, and you're up and running in under 30 minutes.

System Architecture

myBOX IPC acts as the central hub — connecting PLCs on the local network while providing secure remote access, VPN tunneling and cloud connectivity in a single DIN-rail device.
