myPANEL

Name: myPANEL
Brand: mySCADA
Availability: InStock

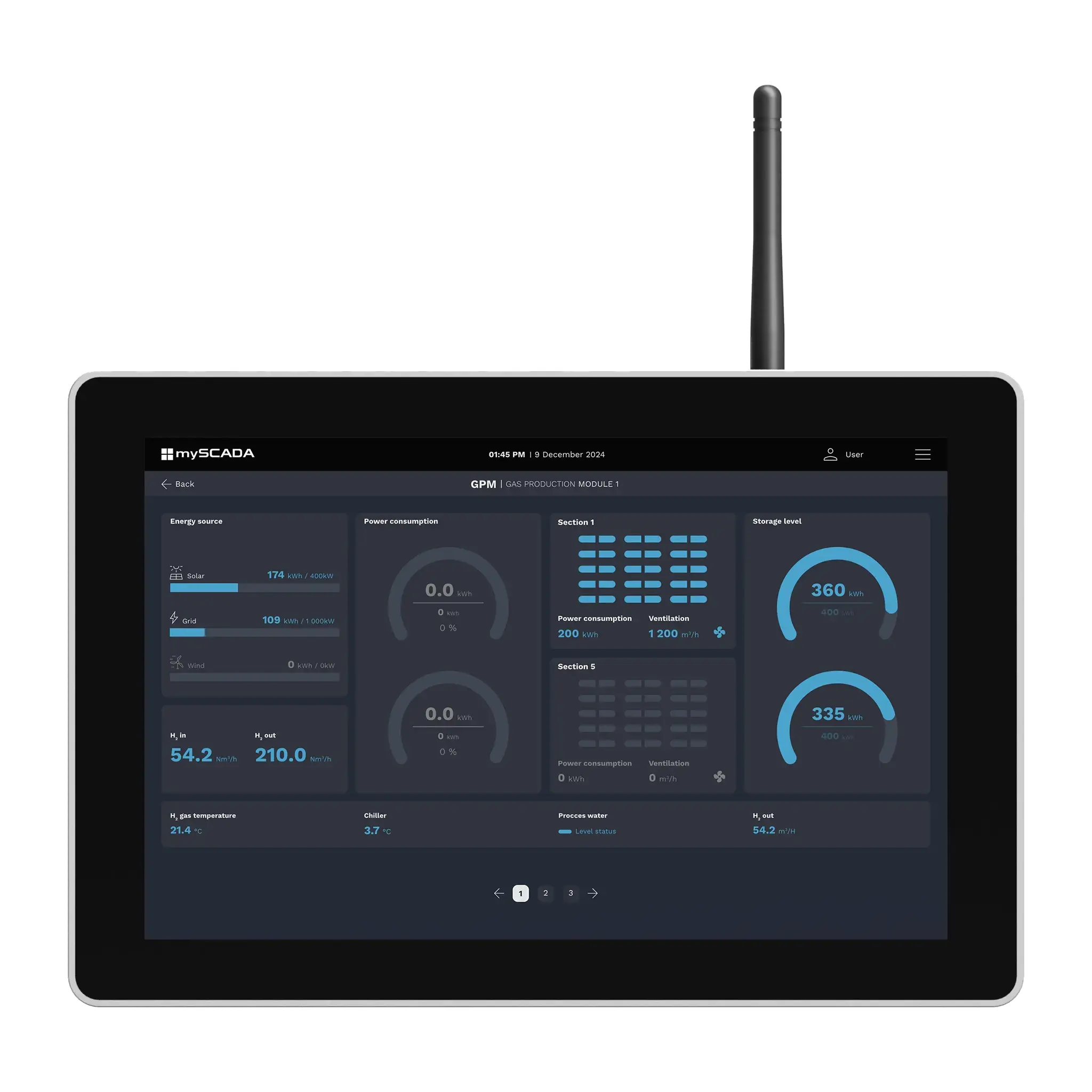

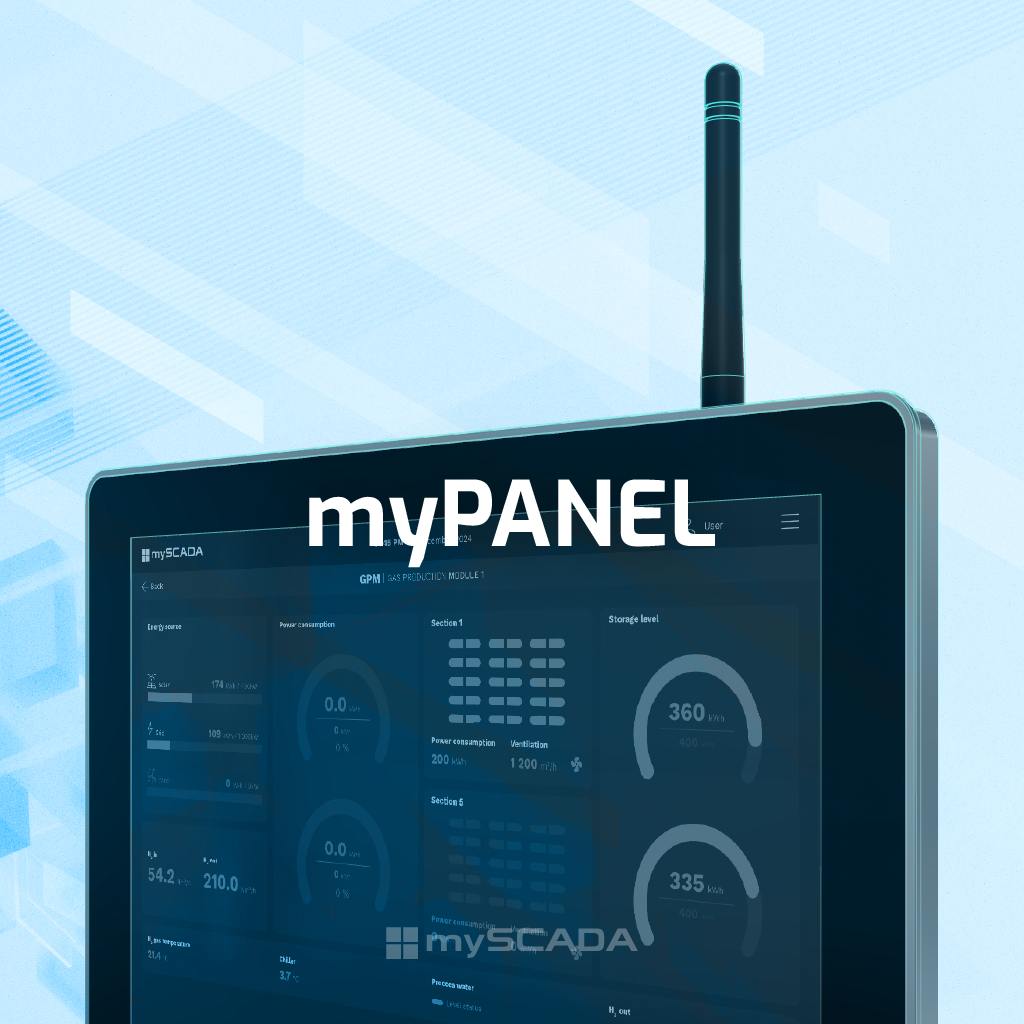

Industrial Touch Panel HMI

myPANEL is an industrial operator panel combining a rugged touchscreen with an embedded mySCADA runtime. Available in 7″, 10″, 11″, 13″ and 15″ sizes — it provides local touch control and remote browser access from the same device, with automatic failover between direct PLC and SCADA server modes.

7″ – 15″

Screen sizes

1920 × 1080

Resolution (max)

FCC & CE

Certifications

Quick Setup

Key Features

Includes myPRO Unlimited license — device-bound, non-transferable
Available in 7″, 10″, 11″, 13″ and 15″ TFT LCD displays
Resolutions from 1024×600 px up to 1920×1080 px
Quad-core ARM v8 64-bit @ 2.4 GHz, 4 GB SDRAM, 32 GB eMMC
Dual-band Wi-Fi (2.4/5 GHz), optional LTE/4G module
Supercapacitor power-failure protection
Direct PLC mode or SCADA server mode with automatic failover
Drop, vibration and shock resistance — FCC and CE certified
Full mySCADA feature set: alarms, trends, OEE, recipes, maintenance
−20 °C to +60 °C operating temperature

Technical Specifications

Screen sizes: 7″, 10″, 11″, 13″, 15″ TFT LCD
Resolutions: 1024×600 (7″) up to 1920×1080 (15″)
CPU / RAM / Storage: Quad-core ARM v8 64-bit @ 2.4 GHz / 4 GB SDRAM / 32 GB eMMC
Wireless: Dual-band Wi-Fi 2.4/5 GHz, optional LTE/4G
Power: 9–36 V DC, supercapacitor protection
Temperature: −20 °C to +60 °C
Certifications: FCC, CE; drop, vibration and shock tested

Dimensions

3D Model — STEP format Download 3D Model

Real-World Deployments

Success Stories

Healthcare Equipment

Embitron

mySCADA provides the visualization backbone for Embitron's electromedical devices — deployed in hospitals and medical facilities around the world.

Read case study

Automotive Components

Vibracoustic

Automotive component manufacturer modernized their production hall with mySCADA — gaining real-time data logging, recipe management and alarm monitoring on operator panels.

Read case study

View all success stories

Model Comparison

All models share the same software platform and feature set — choose the screen size that fits your cabinet and application.

Specification	7″	10″	11″	13″	15″
Display	7″ TFT	10.1″ TFT	11.6″ TFT	13.3″ TFT	15.6″ TFT
Resolution	1024×600	1280×800	1920×1080	1920×1080	1920×1080
Brightness	400 cd/m²	400 cd/m²	450 cd/m²	450 cd/m²	450 cd/m²
CPU / RAM	ARM v8 64-bit 2.4 GHz / 4 GB	ARM v8 64-bit 2.4 GHz / 4 GB	ARM v8 64-bit 2.4 GHz / 4 GB	ARM v8 64-bit 2.4 GHz / 4 GB	ARM v8 64-bit 2.4 GHz / 4 GB
Storage	32 GB eMMC	32 GB eMMC	32 GB eMMC	32 GB eMMC	32 GB eMMC
Max power	24 W	24 W	30 W	33 W	35 W
Weight	1.0 kg	1.2 kg	1.7 kg	2.0 kg	2.4 kg

System Architecture

myPANEL supports two operating modes and automatically switches between them when the primary connection is lost.

Schema A

Direct PLC Mode

myPANEL connects directly to PLCs via Ethernet or serial. Simple topology — ideal for single-machine applications where a standalone panel is all that is needed.

Direct Ethernet or serial connection to PLC
No server infrastructure required
Fast setup — operational in minutes
Full alarm, trend and recipe functionality

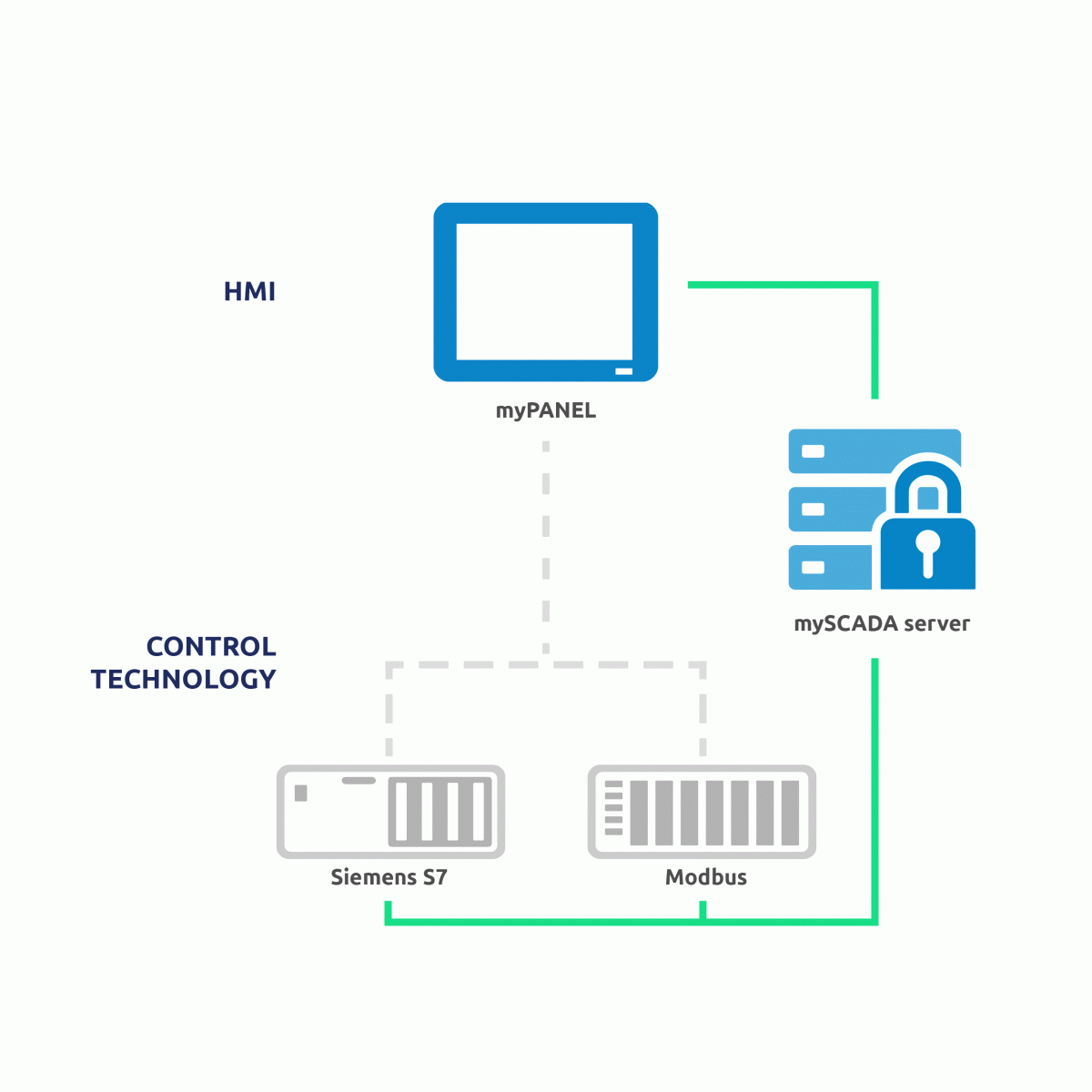

Schema B

SCADA Server Mode

myPANEL connects to a myBOX IPC or myPRO server which handles all PLC communication. Multiple panels share one data source with centralized logging and user management.
