Quick Setup Guide

myPANEL

Industrial Touch Panel HMI

Package Content

1× myPANEL
1× Package with necessary accessories for installation
1× Quick guide

Powering Up

Before you install and wire any device, make sure to disconnect the electric power from the system.

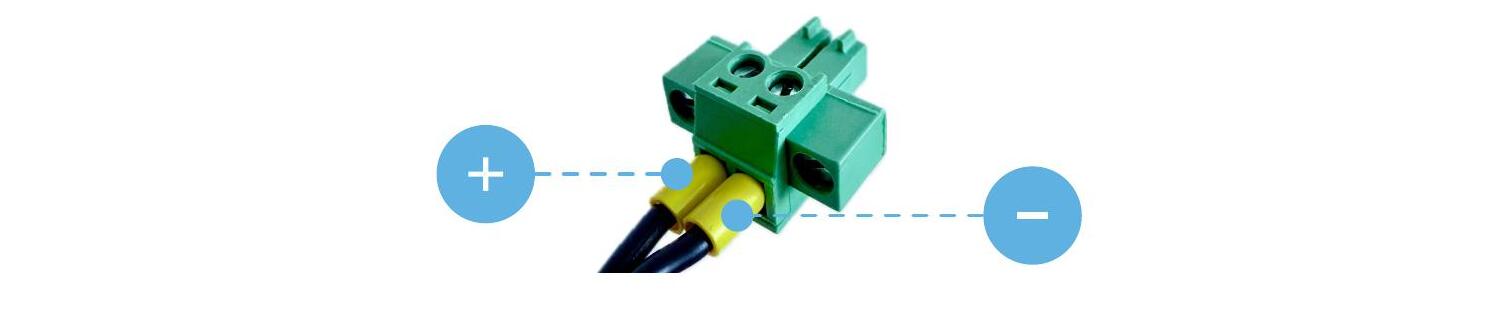

Strip the ends of the cable so it could be slipped into the supplied green connector. Do not forget to check the correct polarity! Tighten the terminal screw using a small flat-blade screwdriver.

Plug electricity cable into myPANEL which must be in the range 9–36 V DC.

Warranty & Lifetime

1 year

Manufacturer's Warranty

Starting from the date of purchase.

2 years

Software & Security Updates

Guaranteed system reliability and compliance with security standards.

First Boot

mySCADA Manager is available on port 34022 on all network interfaces

HMI Runtime runs on port 80 (HTTP) and 443 (HTTPS)

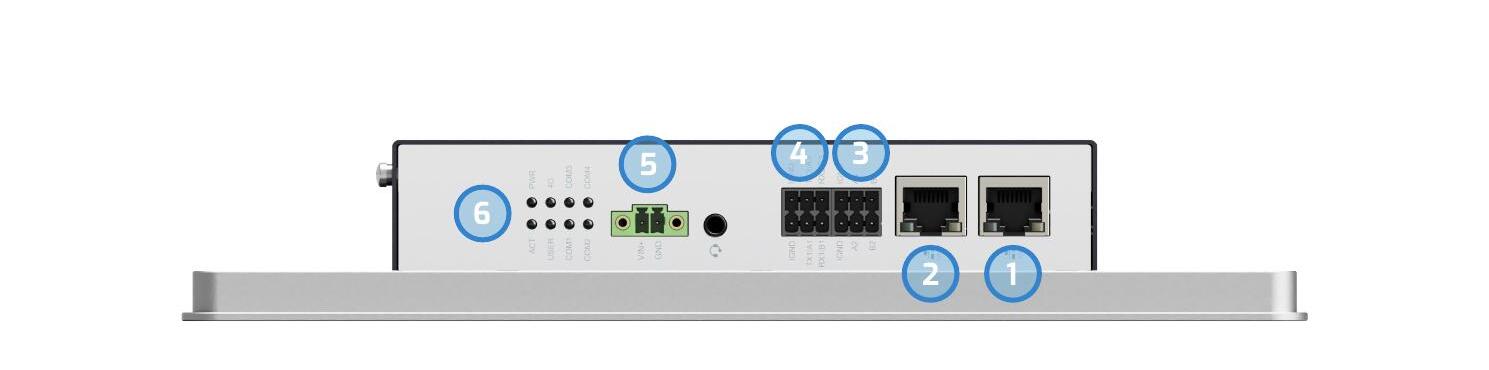

Ethernet Port 1 — LAN

192.168.1.1

DHCP server active — plug in a laptop to get IP automatically in the same range. Manager: 192.168.1.1:34022

Ethernet Port 2 — WAN

DHCP

Receives IP automatically from your network DHCP server. Manager accessible on assigned IP at port 34022.

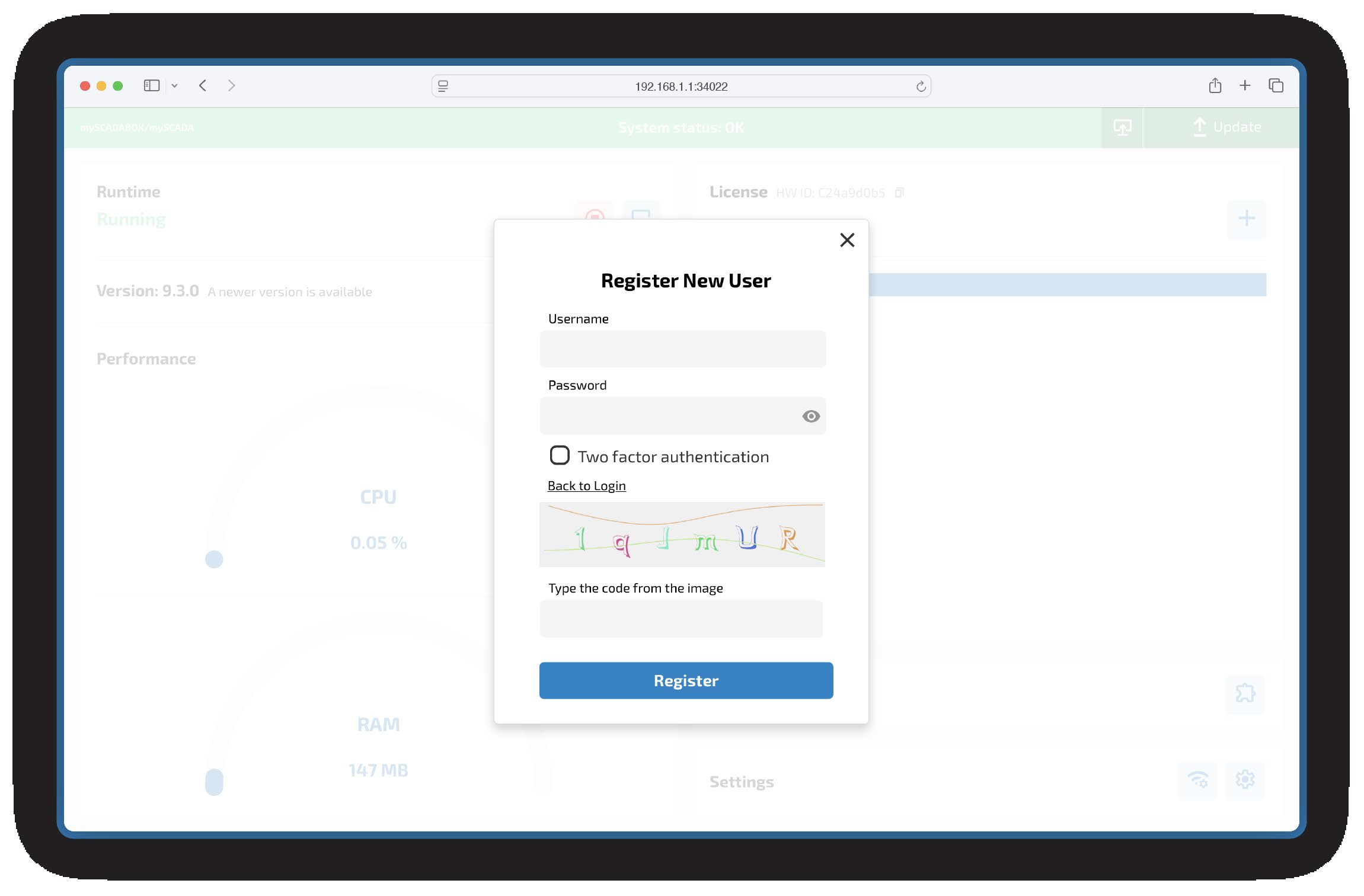

First Connection — Create Administrator Account

On first connection, you will be asked to create an administrator account. Fill in a username and password. For tighter security, we recommend enabling two-factor authentication.
